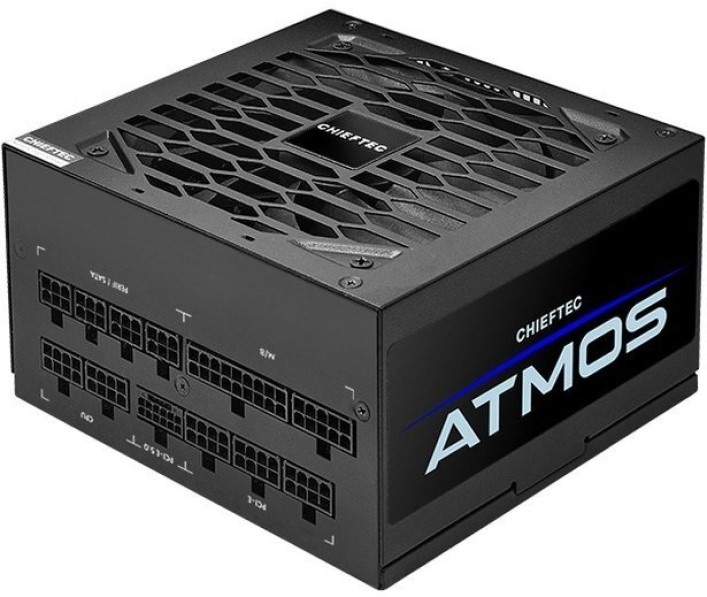

Power supply atx 750w chieftec atmos cpx-750fc, 80+ gold, 120mm, atx 3.0, fb llc, dc/dc, smart fan control, full modular . pn cpx-750fc technical data model atmos 750w article no. cpx-750fc ean code 0753263078391 weight (without/with package) 1.49kg / 3.02kg ac input 100-240v~ / 9-4.5a frequency 50 - 60hz +5v 20a +3,3v 20a +5v +3,3v combined 100w +12v1 62.5a +12v2 - +12v1, +12v2 combined 750w p.f. 0.9 -12v 0.3a / 3.6w +5vsb 3.0a / 15w maximum power 750w connectors 20+4 pin atx 1 8 pin eps (4+4) 2 8 pin pcie (6+2) 2 / 2 16 pin pcie gen5 1 sata 9 molex 4 cable length (mm) 20+4 pin atx 600 8 pin eps (4+4) 2 x 700 8 pin pcie (6+2) 2 x 700 | 700/150 16 pin pcie gen5 600 sata 3 x 550/100/100 molex 550/100/100/100 features atx12v version atx 12v 3.0 efficiency 80plus gold dimension (dxwxh) 140 mm x 150 mm x 86 mm pfc active pfc (0.9) fan 120mm fdb fan security afc (automatic fan speed control) opp (overload protection) otp (over temperature protection) ovp (overvoltage protection) scp (short-circuit protection) sip (surge inrush protection) uvp (under voltage protection) ocp (over-current protection)
